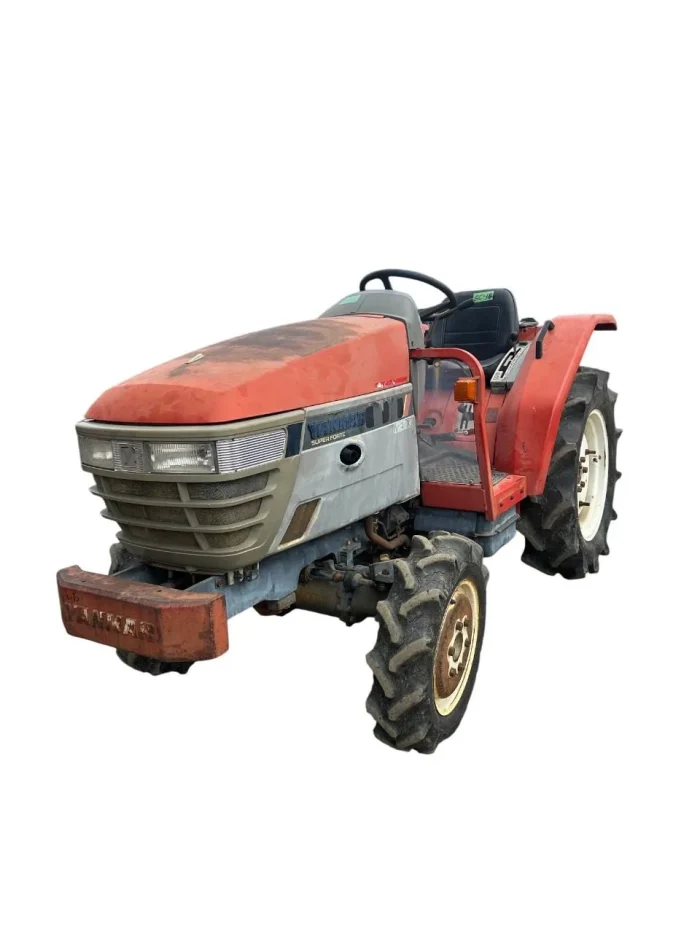

Yanmar AF22 tractor with cutter
Product information Yanmar AF22 tractor with cutter
The Yanmar AF22 is a 22 hp tractor, ideal for agricultural and field work. It has a 3-cylinder diesel engine, 4×4 drive and 16+16-speed transmission. It is equipped with reverse drive, differential lock and power steering.
Main features:
22 hp, 3-cylinder, water-cooled diesel engine.
4×4 traction for grip on difficult terrain.
Differential lock and independent side brakes for safety and stability.
Power steering for easy maneuverability.
Advanced hydraulics and 4+1-speed PTO.
Product specifications Yanmar AF22 tractor with cutter
| Weight | 1124 kg |
|---|---|
| Dimensions | 266 × 124 cm |
| Motor type: | Diesel |
| Number of cylinders: | 3 |
| Cooling system: | Water |
| Engine power: | 22 CP |
| Traction: | On 4 wheels (4×4) |
| Number of steps forward: | 16 (4×4) |
| Count steps back: | 16 (4×4) |
| Reversible unit: | From |
| Differential lock: | From |
| Independent side brakes: | From |
| Wheel base: | 160 cm |
| Front wheelbase: | 88 cm |
| Rear wheelbase: | 71 cm |
| Front tire size: | 6.00-14 |
| Rear tire size: | 9,5-22 |
| Adjustable rear wheelbase: | No |
| Back hook: | 3 points |
| No. of cardan gears: | 4+1 steps |
| Standard cardan shaft: | From |
| Hydraulic cylinder: | From |
| Power steering: | From |
