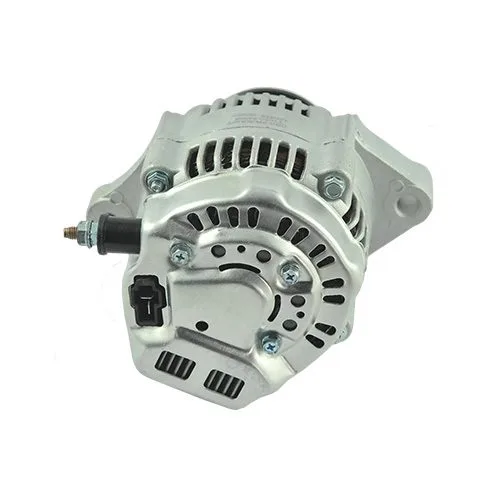

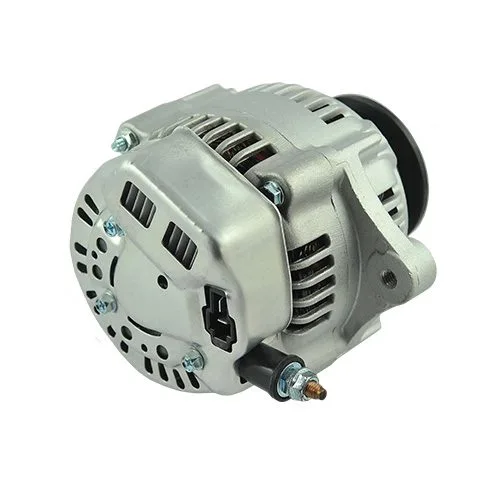

Alternator Kubota (2 feet) (6-09-101-01)
620 lei
Kubota alternator (6-09-101-01), 12V – 45A, compatible with Kubota models L3408, L3608, L4508, L4708, L4708, M5000. Provides battery charging and electrical system power.
*Photographsare for illustrative purposes only and may differ in detail from the delivered product due to variations in production over the years.
Product information Alternator Kubota (2 feet) (6-09-101-01)
Alternator for Kubota L, M tractors with a voltage of 12V and a generated power of 45A, compatible with Kubota D1403 and other engines.
An alternator is a device that converts mechanical energy into electrical current, powering the tractor’s electrical system, including the battery. The alternator generates current only when the engine is running and is driven by a drive belt.
Early signs of alternator failure include the battery charge control lamp lighting on, flickering or not illuminating while the glow plugs are operating. Also, if the battery charging lamp illuminates during tractor operation, this may indicate incorrect voltage being supplied from the alternator to the battery.
Main features:
- Compatibility – suitable for many Kubota models.
- Energy efficient – generates 12V and 45A for optimal performance.
- Construction – increased resistance to wear and harsh conditions.
- Operation – keeps the battery charged and powers electrical systems.
- Kubota L3408
- Kubota L3608
- Kubota L4508
- Kubota L4708
- Kubota M5000
Product specifications Alternator Kubota (2 feet) (6-09-101-01)
| Overall diameter: | 100 mm |
|---|---|
| Total length: | 140 mm |
| Wheel diameter: | 69 mm |
| Belt width: | 6/14 mm |
| Distance between mounting holes: | 135 mm |
| Original part number: | T1060-34508 |
| Reference number: | 6-09-101-01 |
