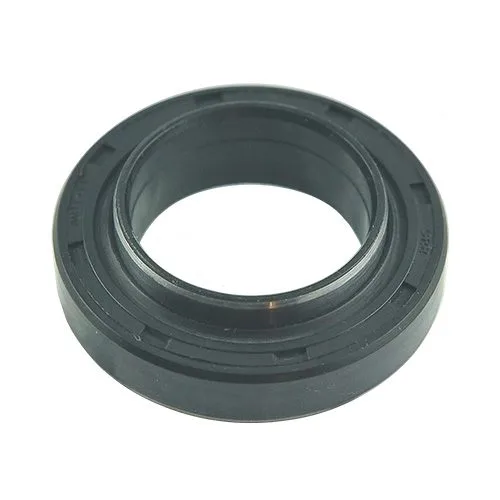

Front axle oil seal Kubota L1, L, M (AQ7745E)

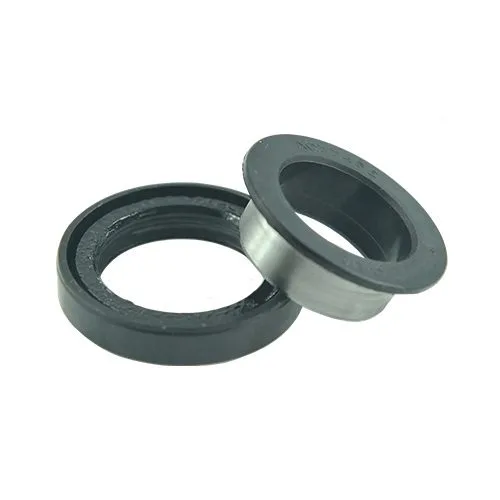

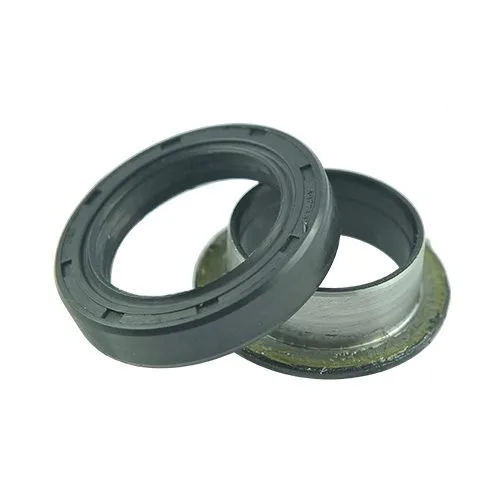

Cartridge gasket for the front axle 4WD wheel and Power Take-Off (PTO) shaft, oil seal with an inner diameter of 35 mm (sleeve), 40 mm (seal), an outer diameter of 58 mm (seal), 40 mm (sleeve), and a height of 13/17 mm for Kubota tractors from the Kubota L1, Kubota L, Kubota M series.

An oil seal is a sealing ring (also called a Simmer ring after the inventor), usually made of rubber or other plastics that meet the technical requirements. It is used to seal the rotating parts of a system with a maximum internal pressure of up to 0.1 MPa and is immersed, during operation, usually in a bath of lubricants, gasoline or water. Seals are most commonly used to seal shafts and transmission or drive systems of machinery and machines. Common types include cassette (two-part) seals, contour-spring sealing rings and part-metal housed seals.
Seals prevent oil or lubricant leaks and keep contaminants out of the system.

Main features:

• Compatibility: Kubota L1, L, M and other series tractors.
• Type: Simering cassette for 4WD front axle wheel and PTO shaft.
• Material: Rubber or high performance plastic.
• Role: Prevents oil leaks and protects against contaminants.
• Maximum internal pressure: 0.1 MPa.

Compatible with tractor models:

Kubota:

• Kubota L1-195,
• Kubota L1-215,
• Kubota L1-235,
• Kubota L1-245,
• Kubota L1-255,
• Kubota L185,
• Kubota L225,
• Kubota L235,
• Kubota L245,
• Kubota L275,
• Kubota L1501,
• Kubota L1801,
• Kubota L1802,
• Kubota L2002,
• Kubota L2050,
• Kubota L2201,
• Kubota L2250,
• Kubota L2350,
• Kubota L2450,
• Kubota L2500,
• Kubota L2650,
• Kubota L2850,
• Kubota L2950,
• Kubota L3000,
• Kubota M4700,
• Kubota M4900,
• Kubota M5400,
• Kubota M5700,
• Kubota M6800,
• Kubota M8200,
• Kubota M9000.
