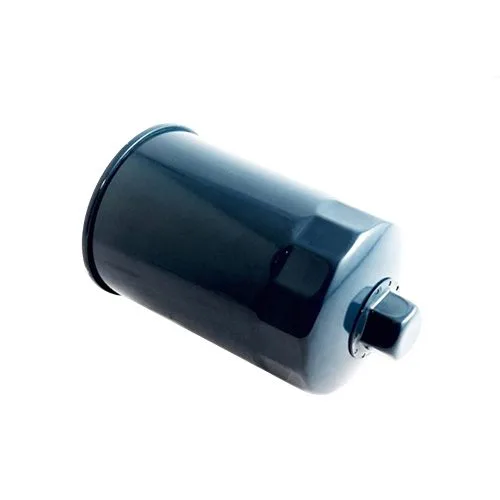

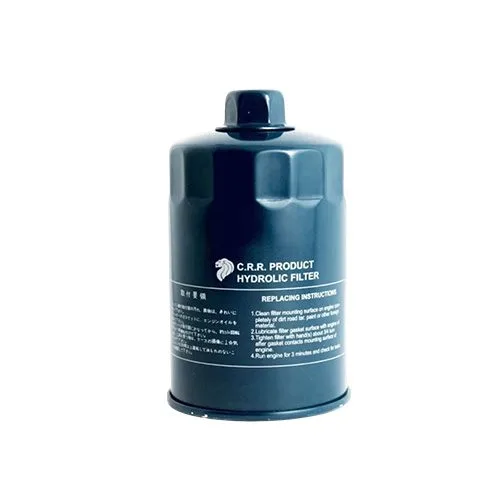

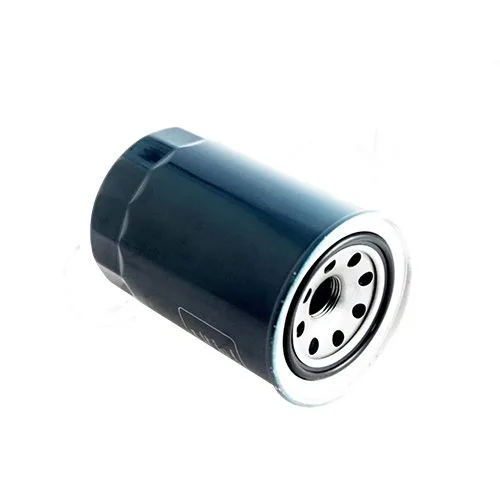

Hydraulic oil filter Kubota B, GB, L, Hinomoto CX (5-01-123-01 / SH 60029 / SPH 9258)

Hydraulic filter with dimensions 80 x 140 mm with M20 x 1,5 thread for Japanese tractors and mini tractors Kubota L series, Aste, Granbia, Satrurn, Hinomoto CX series and others.

The main task of the hydraulic filter is to clean the hydraulic oil, to stop all impurities that enter the hydraulic system or occur during the operation of the tractor, e.g. solid particles (minerals) that occur during the operation of the machine. The hydraulic filter is changed every time the hydraulic oil is changed or the vehicle is frequently operated, in the case of mini tractors it is approximately every 100 hours in the case of second-hand tractors. The rules for changing the hydraulic filter on new tractors are described in detail in the owner’s manual of the machine, usually after the first 50 hours (at least 3 cycles). The hydraulic filter is most often a metal filter with a thread and gasket , which is mounted near the tractor box exactly along the oil flow of the hydraulic system , most often at the bottom of the box or under the floor of our tractor,

Sizes :

• Height: 140 mm,
• diameter: 80 mm,
• Base diameter 84 mm,
• seal diameter: internal 52 mm, external 63 mm,
• fillet: M20 x 1,5. mm,
• comparative numbers: 5-01-123-01 , SH 60029, SPH 9258.

Replacing the hydraulic filter (regular) and cleaning the insert in the case of a mesh filter is a guarantee of trouble-free operation of the machine and the assurance that there are no foreign bodies in the hydraulic system that could damage our tractor or adversely affect the operation of the machine, reducing its operating parameters.
