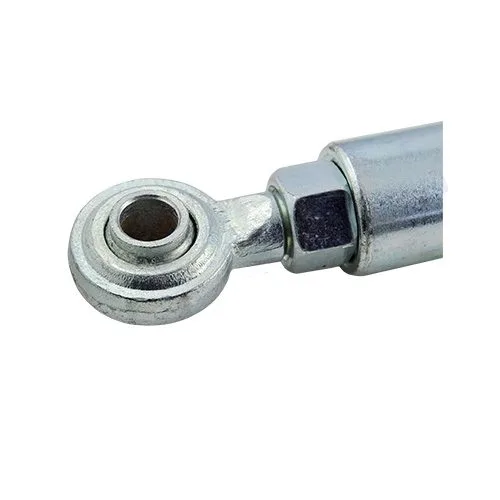

Middle arm Kubota L3408 (6-02-101-01)
Product information Middle arm Kubota L3408 (6-02-101-01)
The Kubota L3408 mid-arm is an essential part of the tractor’s three-point linkage (TUZ) system, used to connect the tractor to agricultural implements. It allows precise length and tension adjustment, contributing to a correct and efficient mounting of equipment.
Key Features:
- Precise adjustment: Allows length adjustment by rotating the central body with oppositely oriented threaded screws.
- Durable material: Made from a corrosion-resistant metal alloy, ideal for tough working conditions.
- Universal use: suitable for Kubota L3408 and other models equipped with TUZ.
Tractor models:
Kubota:
- Kubota L3408
Product specifications Middle arm Kubota L3408 (6-02-101-01)
| Body length: | 355 mm |
|---|---|
| Overall length: | 555 mm (with screws fully tightened) |
| Working length: | 500 mm – 710 mm |
| Fillet: | M24 x 3 |
| Diameter of pin holes: | 19.50 mm (Cat I) |
| Sleeve width for pin mounting: | 38 mm |
| Head diameter: | 57 mm |
| Material: | Corrosion-resistant metal alloy |
| Part number: | 6-02-101-01 |
