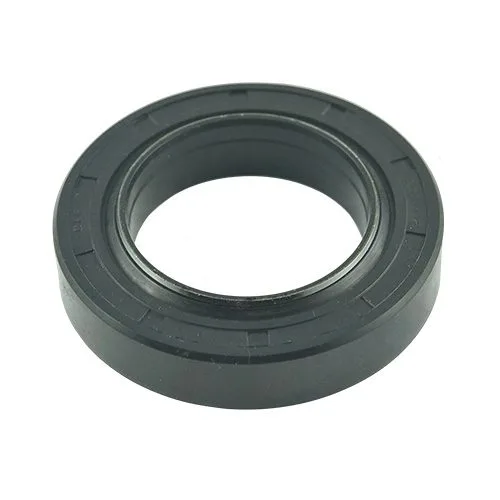

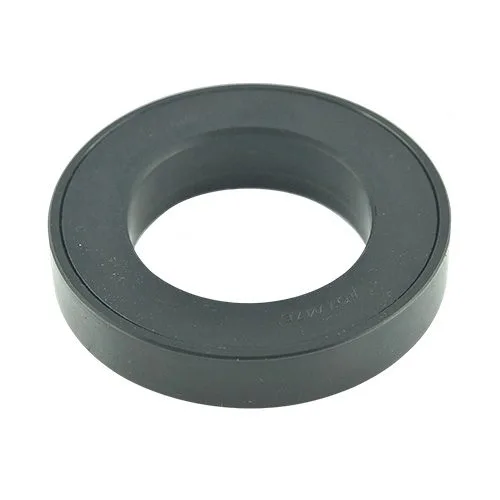

Rear axle oil seal Kubota GL, L (AQ7747E)

Sealing cartridge gasket for rear axle, with an inner diameter of 52 mm, outer diameter of 85 mm, and a height of 16.50/19 mm, for Kubota tractors from the Kubota GL19, Kubota GL21, Kubota L185, Kubota L245, Kubota L2201 series, and others.

A sealing ring (also known as a Simmer ring, after the inventor) is usually made of rubber or other plastic materials that meet the required technical specifications. It is used to seal rotating elements of a system, with a maximum internal pressure of up to 0.1 MPa, typically immersed during operation in a bath of lubricants, gasoline, or water. Seals are most commonly used for sealing shafts and the transmission or drive systems of machinery and equipment. Common types include cartridge seals (made of two parts), sealing rings with an outer contour spring, and seals with a partially metallic casing.
Seals prevent oil or lubricant leaks and keep contaminants out of the system.

Main features:

• Compatible with Kubota models GL19, GL21, L185, L245, L2201.
• Made from materials resistant to oil, dirt and wear.
• Prevents oil leaks and protects the rear axle.
• Transmission and drive system seal.

Tractor models:

Kubota:

• Kubota GL19,
• Kubota GL21,
• Kubota L185,
• Kubota L245,
• Kubota L2201.
