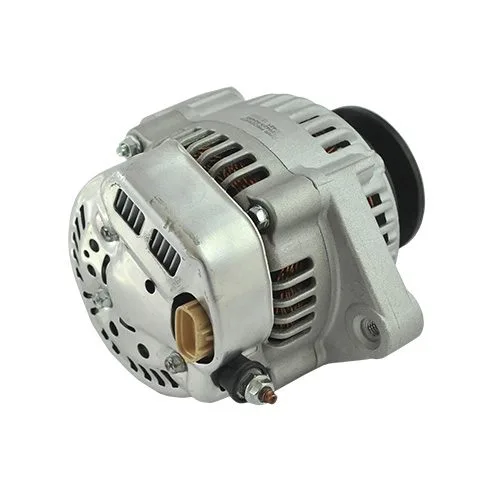

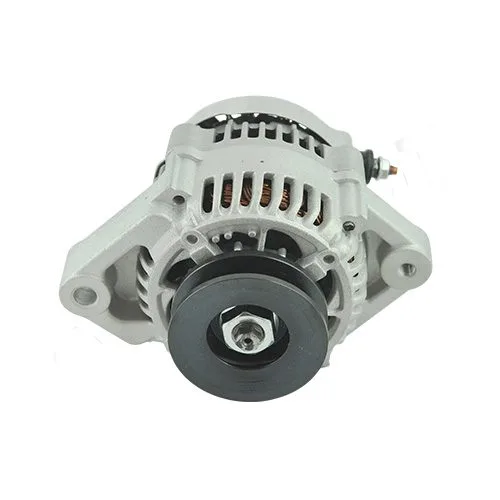

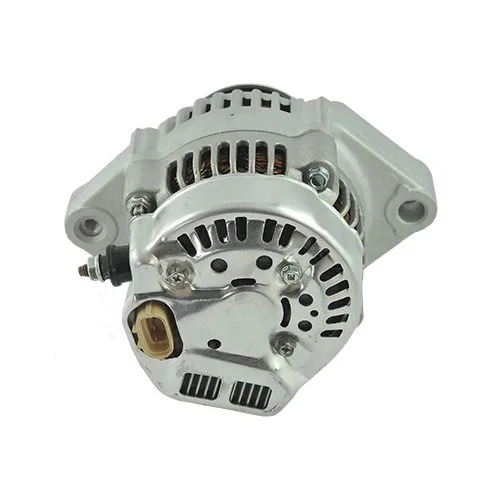

Alternator Yanmar EF (3 feet) (6-09-101-02)
520 lei
Alternator Yanmar EF (6-09-101-02), compatible with Yanmar 3TNV88 engine. Provides efficient battery charging and power to the tractor’s electrical system.
*Photographs are for illustrative purposes only and may differ in detail from the delivered product due to variations in production over the years.
Product information Alternator Yanmar EF (3 feet) (6-09-101-02)
The alternator Yanmar EF (6-09-101-02) is an essential component for powering the tractor’s electrical system, ensuring a constant battery charge and optimal operation of electrical equipment. Designed for the Yanmar EF352T, EF393T and other compatible Yanmar EF352T, EF393T and other compatible models.
The first signs of alternator failure include the battery charge control lamp lighting on, flickering or not illuminating during operation of the tractor’s glow plugs. Also, if the battery charging lamp illuminates during tractor operation, this may indicate incorrect voltage being supplied from the alternator to the battery.
Main features:
- Compatibility – suitable for Yanmar EF352T, EF393T and other models equipped with Yanmar 3TNV88 engine.
- Energy efficient – converts mechanical energy into electrical current for optimal operation.
- Construction – resistant to wear and extreme operating conditions.
- Operation – keeps the battery charged and powers electrical systems.
Compatible with tractor models:
Yanmar:
- Yanmar EF352T,
- Yanmar EF393T.
Engine:
- Yanmar 3TNV88,
Product specifications Alternator Yanmar EF (3 feet) (6-09-101-02)
| Overall diameter: | 110 mm |
|---|---|
| Total length: | 140 mm |
| Wheel diameter: | 69 mm |
| Belt width: | 4/12 mm |
| Distance between mounting holes: | 145 mm |
| Original part number: | 129423-52453 |
| Reference number: | 6-09-101-02 |
