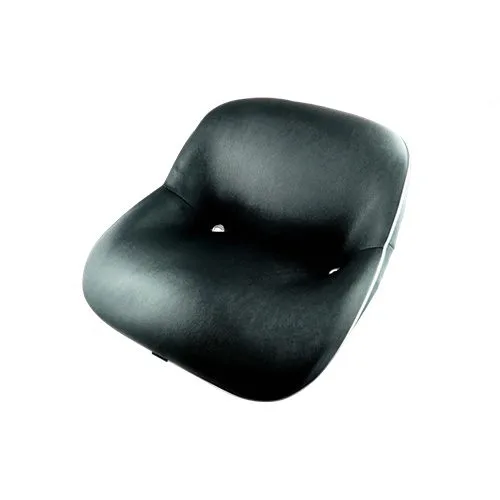

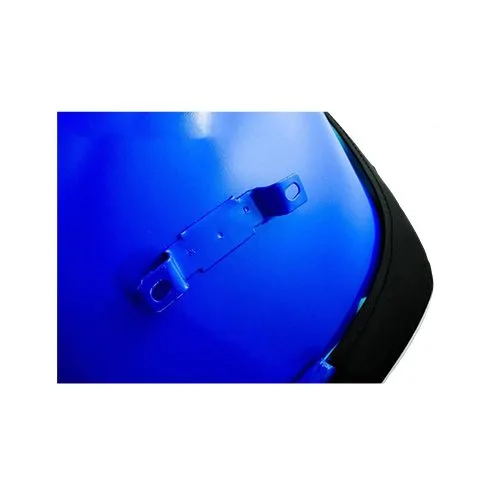

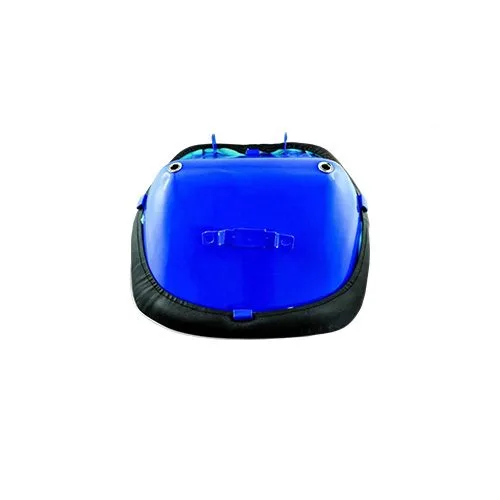

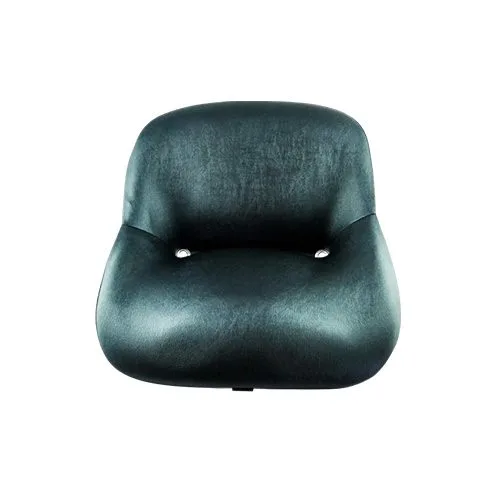

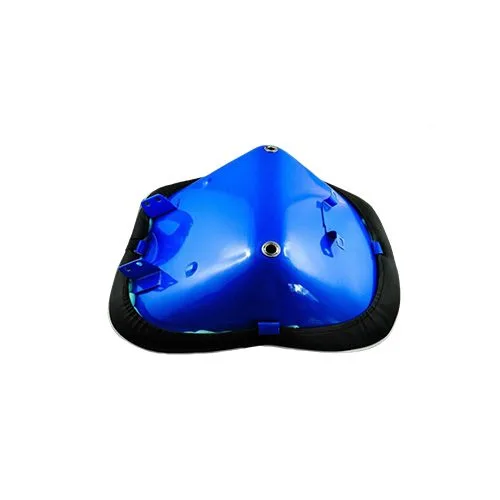

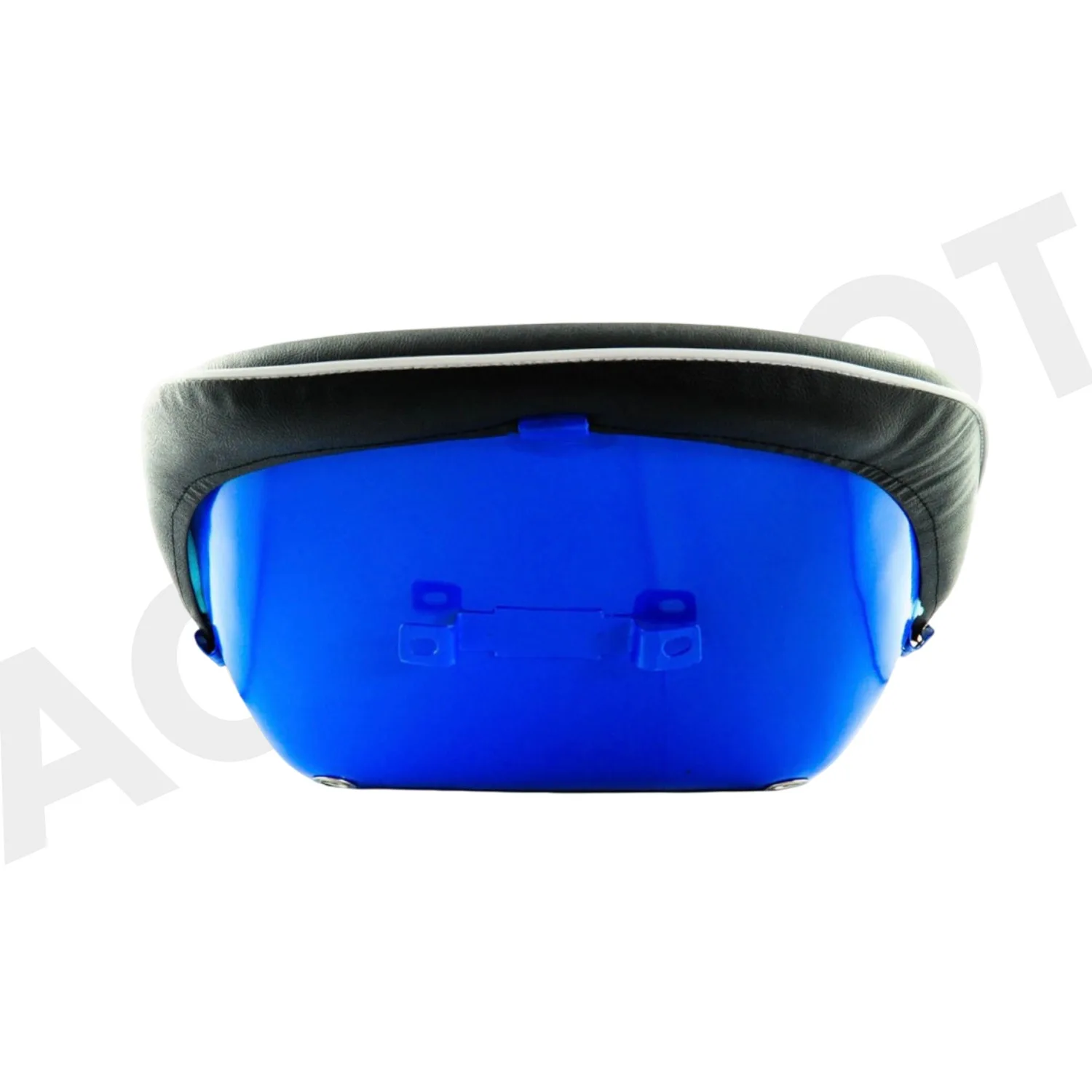

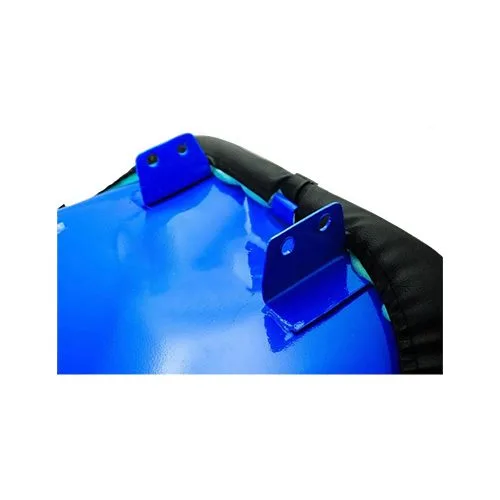

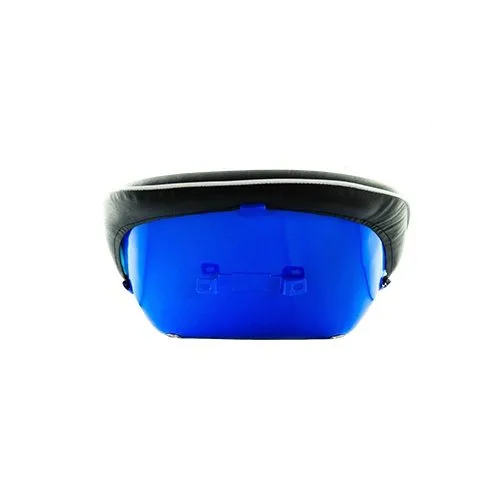

Iseki assembled tractor chair (7-14-108-02)
Product information Iseki assembled tractor chair (7-14-108-02)
The assembled tractor chair Iseki (7-14-108-02) is ergonomically designed to support the operator during prolonged work. It is easy to assemble thanks to its standard dimensions and mounting points, and the materials used ensure long-term use.
Main features:
- Comfort – supports the operator throughout the working day.
- Durability – made from quality materials.
- Universal mounting – fits various Iseki tractor models thanks to standard mounting points and dimensions.
Tractor models:
Iseki
Product specifications Iseki assembled tractor chair (7-14-108-02)
| Seat width: | 460 mm |
|---|---|
| Length (seat + backrest): | 570 mm |
| Height: | 260 mm |
| Length of the seat (measured from the bottom to the bend of the seat): | 335 mm |
| Distance between stud mounting holes (internal dimension): | 165 mm |
| Diameter of the mounting holes of the studs: | 10 mm |
| Distance between the mounting holes of the warning triangle: | 130 mm |
| Distance between seat holes: | 265 mm |
| Color: | Black with blue back. |
