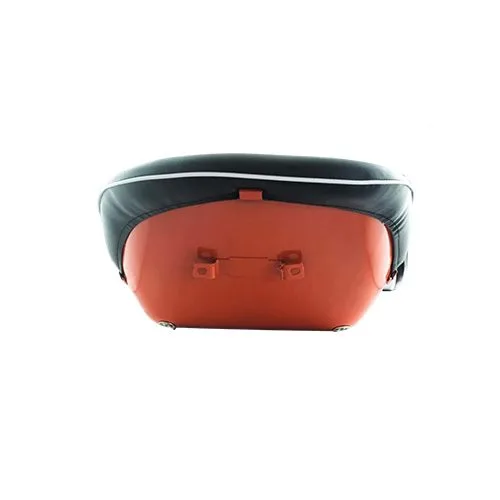

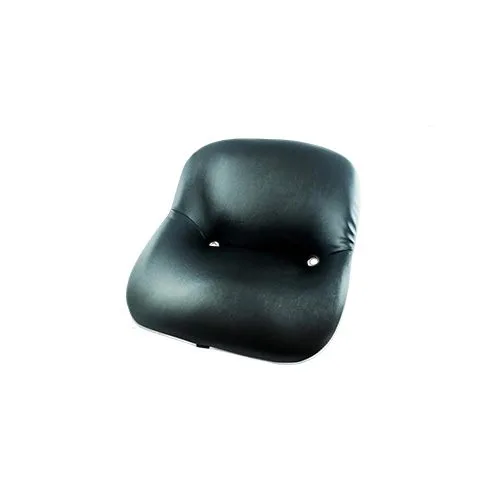

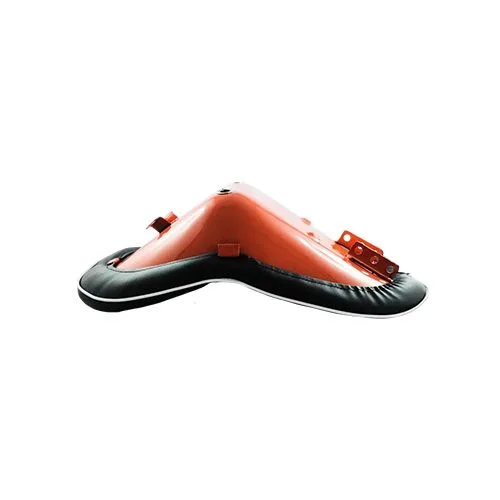

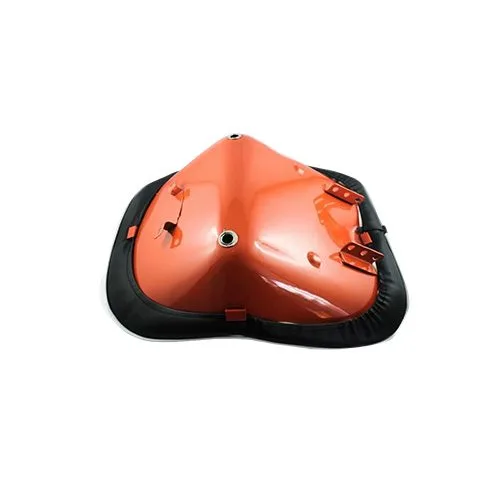

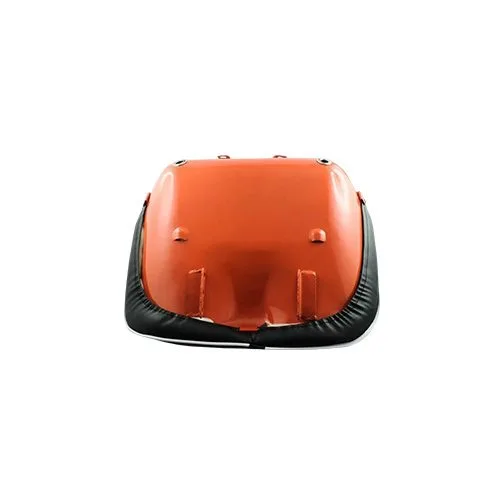

Kubota L assembled tractor seat ( 5-14-202-01)
Product information Kubota L assembled tractor seat ( 5-14-202-01)
This universal tractor seat is designed to provide comfort during extended work on Kubota tractors, including the L1500, L2000 and L2201 models. The seat is built to ergonomically support the operator. Its universal design also makes it compatible with other tractor models that have similar mounting specifications.
Features:
- Comfort and Ergonomics: Optimal support for operator comfort, reducing fatigue during prolonged use.
- Durability: Made from materials resistant to agricultural working conditions.
- Universal Mount: Compatible with Kubota tractors and other models with similar specifications.
Tractor models:
- Kubota L1500,
- Kubota L2000,
- Kubota L2201.
Product specifications Kubota L assembled tractor seat ( 5-14-202-01)
| Seat width: | 465 mm |
|---|---|
| Length (seat + backrest): | 540 mm |
| Height: | 270 mm |
| Length of the seat (measured from the bottom to the bend of the seat): | 330 mm |

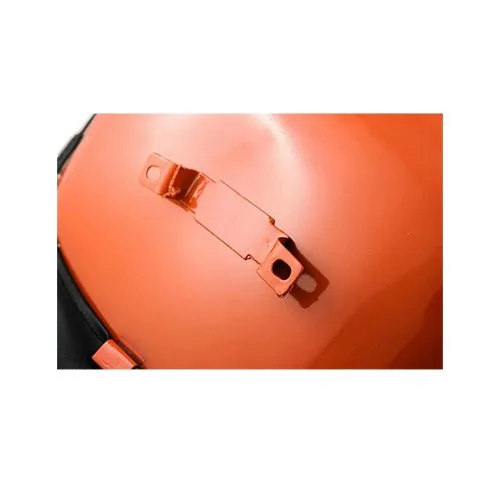

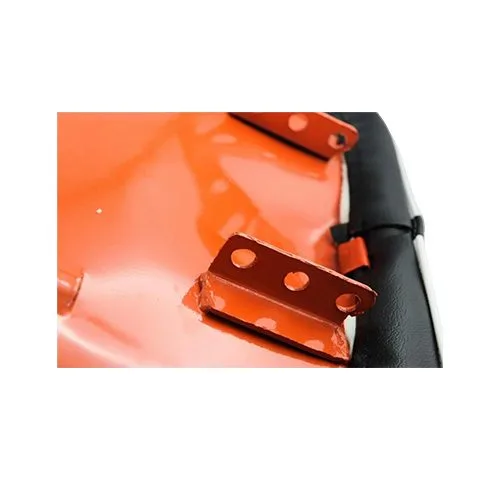

| Distance between stud mounting holes (internal dimension): | 150 mm |
| Diameter of the mounting holes of the studs: | 11 mm |
| Distance between the mounting holes of the warning triangle: | 130 mm |
| Distance between seat holes: | 270 mm |
| Color: | Black chair with orange backrest |
