Joint cap for Kubota L4508 (5-21-116-10)

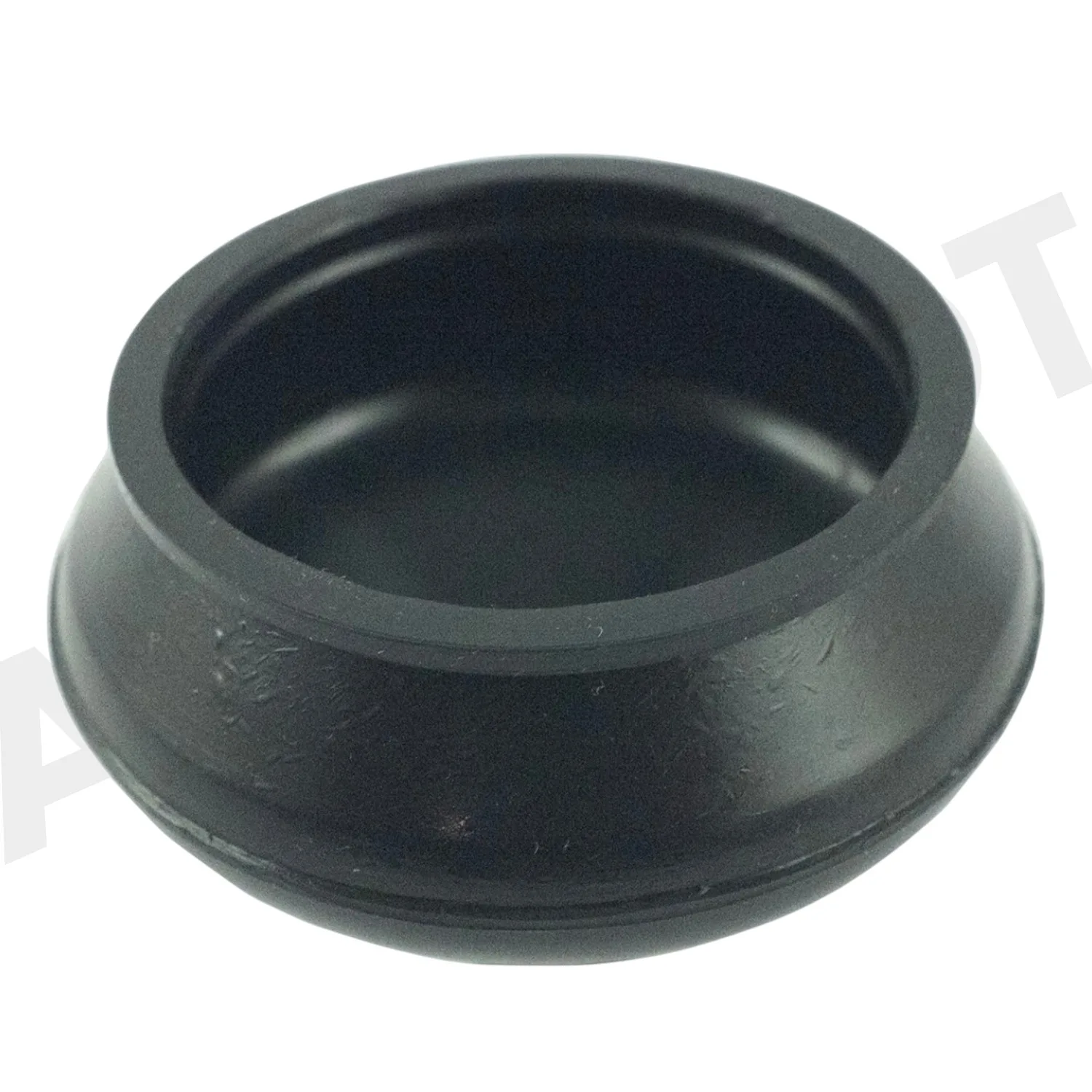

Rubber shifter sleeve with a maximum diameter of 57 mm and a height of 36 mm, with 16 mm and 42 mm diameter holes, compatible with Japanese Kubota L-series tractors and others.

A rubber guard, commonly known as a ‘dust cover’, is most commonly a rubber cone (or tubular shape), tapered at the ends on one or both sides, with a groove for easier fitting, for example, by a pressure band. This type of protection is used not only for gear shift levers and rod ends, but also inside mechanical systems, sealing assemblies of parts such as semi-axles or various types of shafts that are not subject to high rotational speeds during operation.
The main function of the ‘dust cover’ is to prevent dirt from entering the mechanical assembly and to protect against loss of lubricant, essential for the proper functioning of the many moving parts of the tractor.

Damaged mechanical seals (abrasions, cracks caused by rubber wear) should be replaced as soon as possible to prevent contamination inside the system, which could lead to failure or seizure of the mechanical assembly.

Main features:

• Protects gear shift levers from dirt and dust.
• Prevents lubricant loss for moving parts.
• Made of wear-resistant rubber.
• It mounts easily through the integrated groove for a quick fix.
• Compatible with Kubota L4508 and other tractors.

Tractor models:

Kubota:

• Kubota L4508
