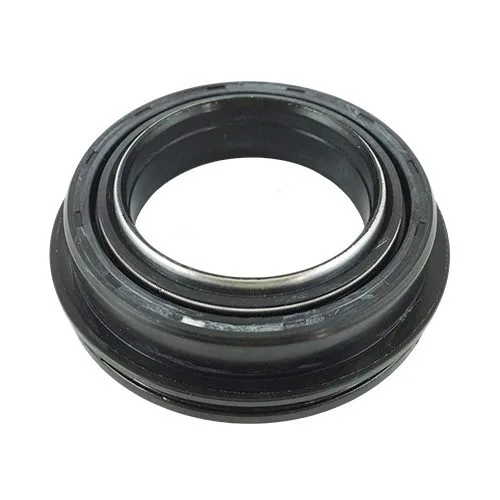

Front axle oil seal Kubota GL, L (BQ4504F)

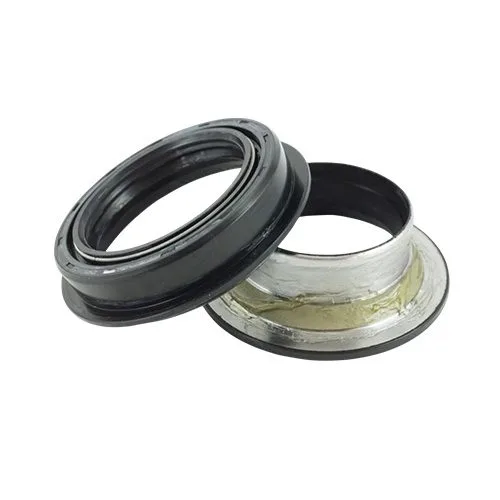

Front axle oil seal , with inner diameter 46 mm (sleeve), 51 mm (seal), outer diameter 70 mm (seal), 51 mm (sleeve), flange diameter 78 mm and height 13/24 mm, intended for Kubota tractors of Kubota GL, Kubota L series.

The oil seal is a sealing ring (also called Simmer ring after the inventor), usually made of rubber or other plastics that meet the technical requirements. It is used to seal the rotating parts of a system with a maximum internal pressure of up to 0,1 MPa and is immersed, during operation, usually in a bath of lubricants, gasoline or water. Seals are most commonly used to seal shafts and transmission or drive systems of machinery and machines. Common types include cassette (two-part) seals, contour-spring sealing rings and part-metal housed seals.
Seals prevent oil or lubricant leaks and keep contaminants out of the system.

Main features:

• Compatibility: Kubota GL and L tractors (e.g. GL32, L2501, L2800, L4310, L4400).
• Type: front axle seal for front wheel points.
• Material: made of wear-resistant rubber for an effective seal.
• Protection: prevents oil leaks and keeps contaminants out of the transmission system.
• Protective flange: Includes a 78 mm flange, which contributes to the stability of the seal.

Compatible with:

Kubota:

• Kubota GL32,
• Kubota GL300,
• Kubota L2501,
• Kubota L2800,
• Kubota L2808,
• Kubota L2900,
• Kubota L3010,
• Kubota L3200,
• Kubota L3240,
• Kubota L3250,
• Kubota L3300,
• Kubota L3408,
• Kubota L3410,
• Kubota L3430,
• Kubota L35,
• Kubota L3540,
• Kubota L3560,
• Kubota L3600,
• Kubota L3710,
• Kubota L3800,
• Kubota L3830,
• Kubota L39,
• Kubota L3940,
• Kubota L4060,
• Kubota L4200,
• Kubota L4300,
• Kubota L4310,
• Kubota L4400.
