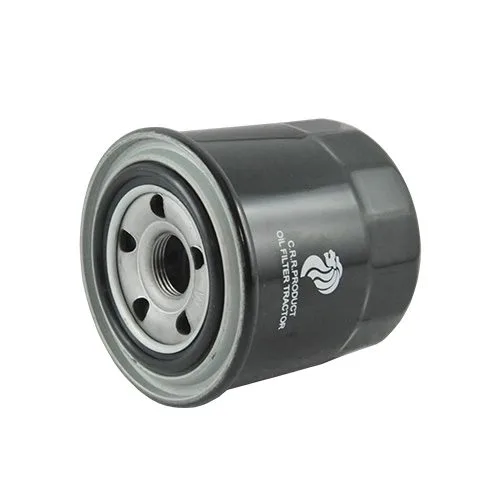

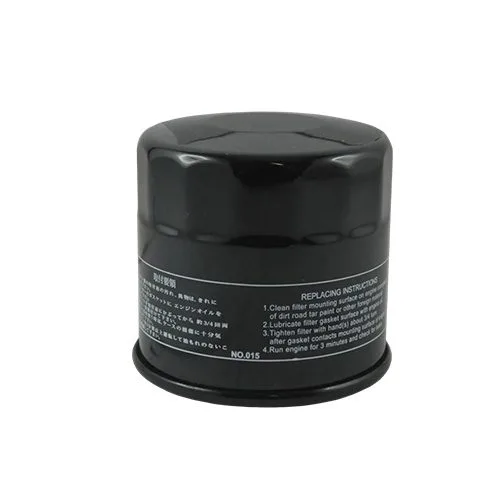

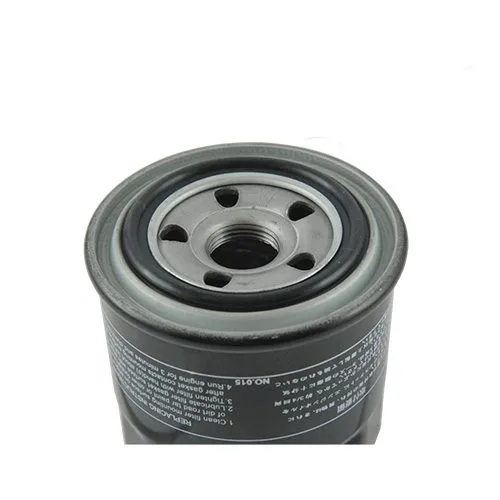

Fuel filter Yanmar EF352T (SO 6105)

Screw-on metal fuel filter with an external diameter of 80 mm, total height of 78 mm with a thread diameter of M20 x 1.5 for Japanese series tractors EF352T of the Yanmar EF352T series and others.

The fuel filter is one of the most important elements of the fuel system that directly affects the proper operation of the tractor. The main task of the filter is to clean the fuel from mechanical impurities and micro-organic impurities. Fuel filters are divided into two main groups due to their application and thus we will use a different type of filter for a gasoline engine than for a diesel engine. Irrespective of the type of fuel, the filter material is made of different types of blotting paper based on polyester or cellulose fibers with the addition of synthetic fibers.

Sizes:

• outer diameter: 80 mm,
• base diameter: 82 mm,
• height: 82 mm
• seal diameter: inernal 50 mm, external 64 mm.
• fillet: M20 x 1,5,
• comparative numbers: 129150-35152, SO 6105.

A dirty fuel filter restricts the free flow of fuel to the engine and can cause problems starting the engine or cause the engine to run intermittently. Sometimes a clogged fuel filter will cause the engine to lose rated power or result in higher fuel consumption.
