Headlight Housing for Yanmar EF453T (5-07-121-03)

Bulb holder (bulb 5-26-221-08 , 12V 35/35W ST , right bulb 5-19-100-28 , left bulb 5-19-100-29 , 1A7780-53200) for Yanmar tractors brand Yanmar EF EF , series Cadet Cub Cadet 5 Cub series, Cadet Cub EF453 Cadet EX2900, Cub Cadet EX3200 and others.

The Yanmar tractor bulb holder is a high quality part designed for Yanmar tractors and farm machinery and other Cub Cadet . It ensures reliability and ease of installation, making it an ideal solution for those looking for replacement parts for their machine’s lighting system. The product is made with precision, which guarantees long-lasting operation in tough working conditions.

Dimensions:

• Inner Diameter of the Mount (Collar); 25 mm,
• height: 55 mm,
• bulb: 5-26-221-08 , 12V 35/35W ST ,
• cable length: 150 mm,
• mounting diameter (rubber): 40 mm,
• original part numbers: 1A7000-53230, 3A011-75740,
• track numbers: 5-07-121-03.

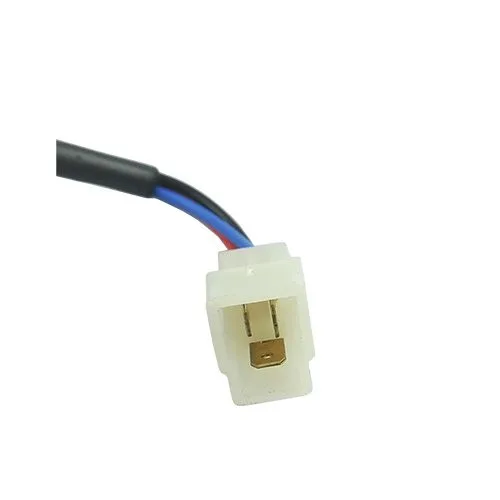

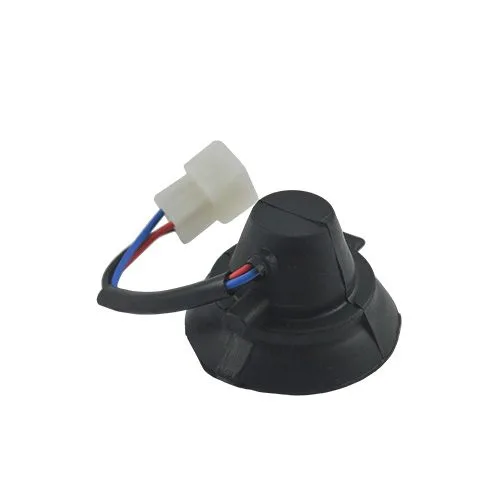

Bulb holder for 12V 35/35W ST bulb with two filaments and 3-pin connector. The socket is mounted on the reflector, headlamp using the so-called push-in with an appropriately selected force, in order not to damage the lampshade or the socket.

*Photographs are for illustrative purposes only and may differ in detail from the delivered product due to production differences over the years.
